Maxview Roam Basecamp Portable WiFi 4G with Antenna

Maxview Roam Basecamp Portable WiFi 4G with Antenna

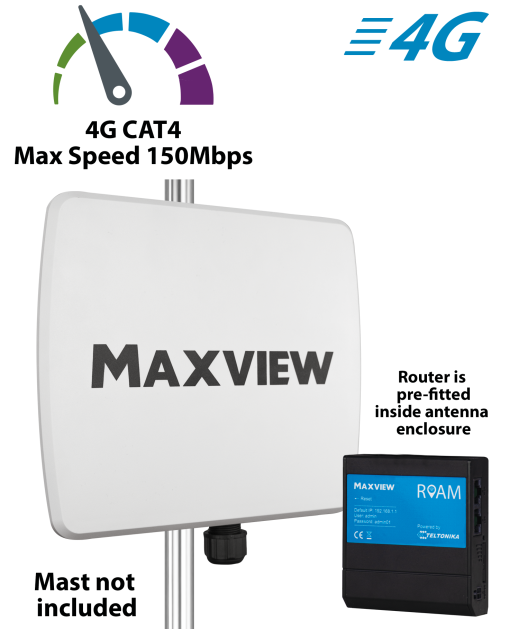

Roam Basecamp Portable WiFi Solution
No roof mounting, no holes & no fixed location!

The Maxview Roam Basecamp Portable WiFi 4G with Antenna is an adaptable and multi-functional omni-directional WiFi solution, perfect for various leisure activities. It is ideal for use in vehicles and static homes where drilling into the roof is not an option.

In addition it is ideal for small portable business applications:

• Outdoor show vendors
• Fast food trailers
• Garden offices
• Other similar applications

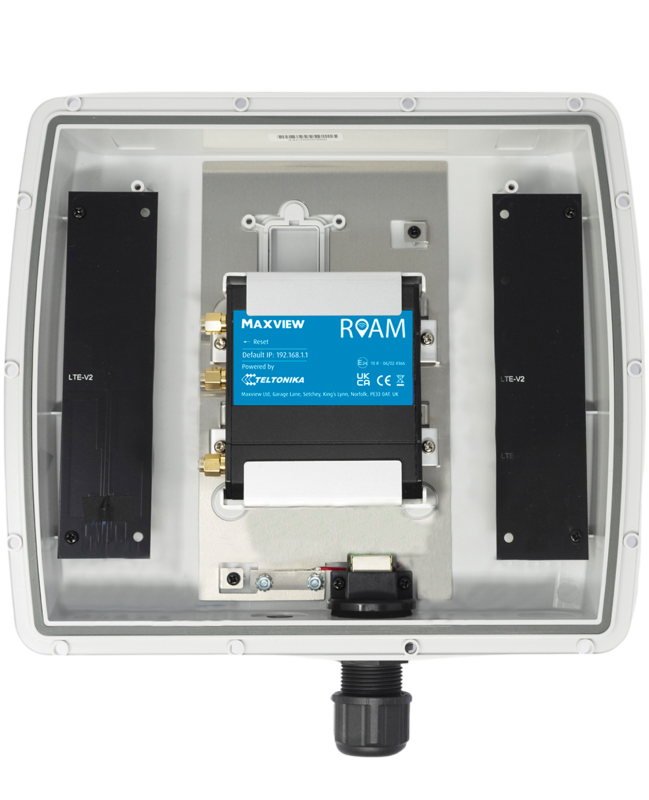

Supplied with a Router from our Maxview Roam System, which is tried and tested with 5 years on the market. This is fully enclosed inside a compact but powerful weatherproof antenna assembly and can be easily accessed to change the data SIM card provider. As the router is located in the antenna assembly, there is no signal lost due to long cable runs, optimising 4G and WiFi reception.

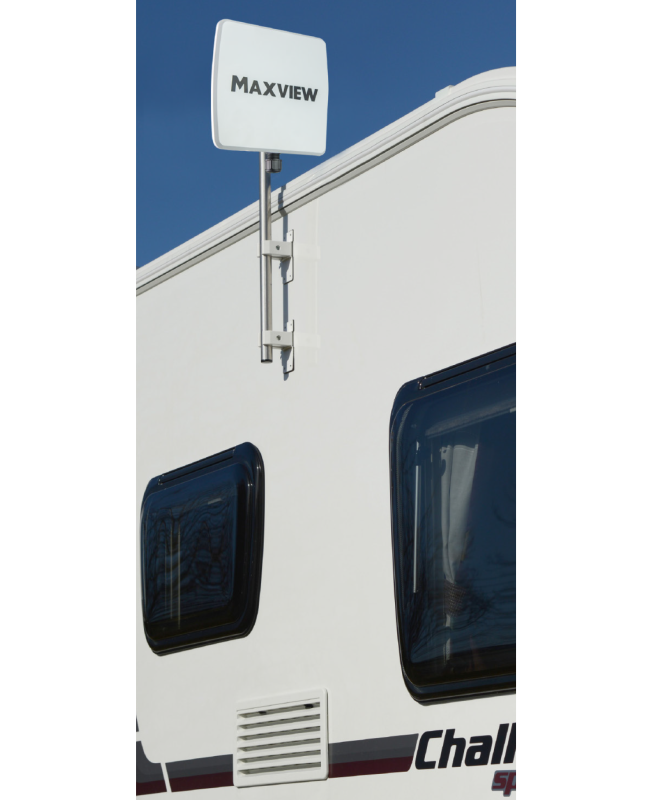

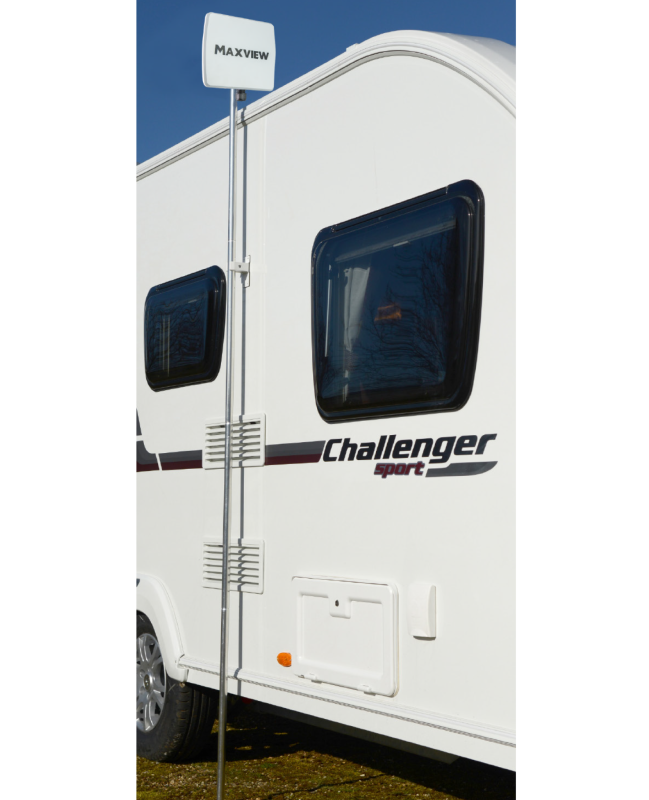

It includes a secure fast slide-in, rust resistant fixing bracket, allowing the system to be temporarily mounted to walls, poles, tripods or any other suitable, secure method onto your vehicle or any other suitable application. (Reference Maxview’s accessories below).

Cabling can be fed simply into the vehicle through an open window, door, or roof light. Only a single cable is required to the antenna, using Power over Ethernet (PoE) to power the router, meaning there are no limitations on cable length. The PoE adaptor also features an additional port for connecting a wired device such as a laptop or TV.

What does it do?

The Roam Basecamp Portable WiFi Solution uses a powerful antenna and a 12v 4G router which provides your motorhome WiFi or Caravan WiFi etc.

The Roam Basecamp helps you to get better internet in two ways.

• Firstly the Roam Basecamp uses 4G mobile data in order to create a reliable WiFi hotspot. By using the antenna it can often pick up usable signals where your phone can’t.
• Secondly where a direct WiFi source is available the Roam can be used to connect to an existing WiFi hotspot. Ensuring data is only used when necessary.
• Overall the Roam Basecamp acts as an ideal Motorhome or Caravan WiFi booster to keep you connected.

Suitable for DIY installation

By a competent DIYer, only 1 wired connection into your leisure vehicle required (through an open window, door or skylight). Fully illustrated, step by step installation instructions included for a quick fitting.

Will it work in Europe?

Yes, it will work in Europe. The Roam Basecamp works across the UK and Europe but this is dependent on data provider and contract.

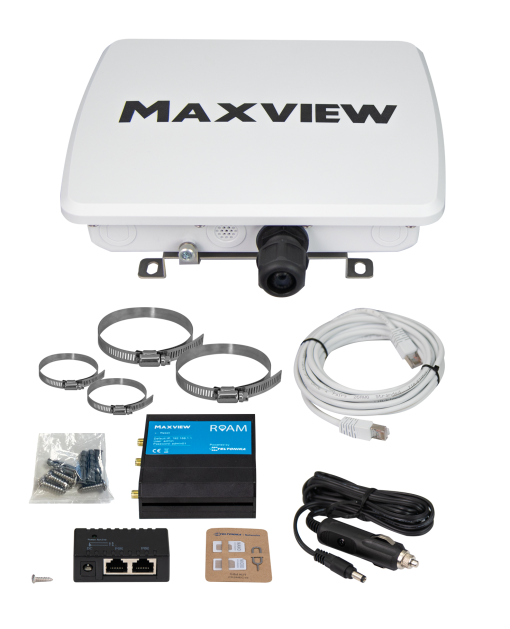

What are the contents of the Maxview Roam Basecamp Portable WiFi Solution?

• Antenna Assembly with Mounting Bracket
• 4G Teltonika Router (already fitted inside Antenna)
• 5M Ethernet Cable
• POE Adaptor
• 12V Cigarette Power Supply
• 2 x large adjustable Pole Clamps
• 2 x small adjustable Pole Clamps
• SIM Card Adaptor Pack
• Wall Mount Pack
• Instructions
• 4G Cellular Router (Teltonika Rut200) – 4G speeds up to 150Mbps
• Omni-directional – By receiving signals throughout 360 degrees, the Roam Basecamp requires no manual directional adjustment, simply temporary mount and forget.
• Antenna Enclosure – IP67, NEMA6 waterproof rated with high impact, UV resistant polycarbonate plastics. Includes Gore Vent for ventilation.
• Cabling – Uses Power over Ethernet (PoE) to power the router, meaning there are no limitations on cable length. The PoE adaptor also features an additional port for connecting a hardware wired device such as a laptop or TV.

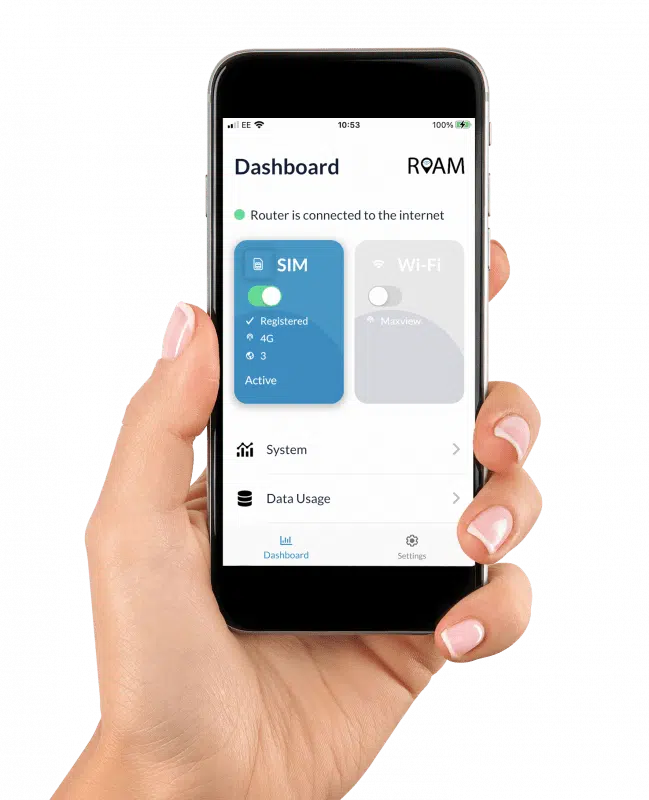

• Intuitive WebUI and Free Roam App Control – For easy setup and advanced configuration.
• Factory Unlocked for use with any SIM Card – The router is designed to work with any data service provider, alongside your choice of Pay As You Go or monthly contract, so you can use whatever network works best for you.
• Secure Internet Browsing – Uses advanced password encryption methods, to ensure your internet connection remains secure.
• Connectivity – Can be wired using a Ethernet Cable providing a connection directly to a device. Ideal for Smart TV’s or laptops.
• Family Friendly Browsing – Bespoke website blacklist filters can be set up to block unwanted websites.

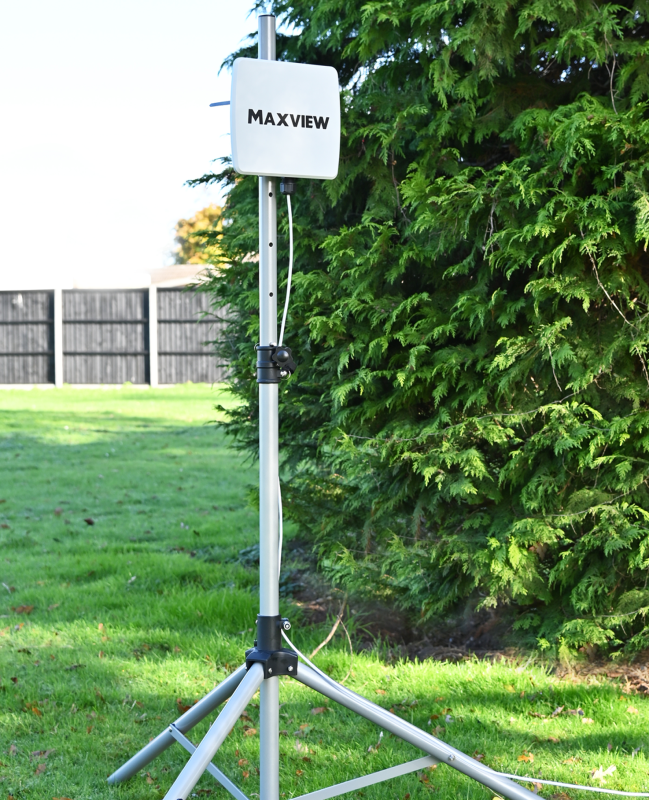

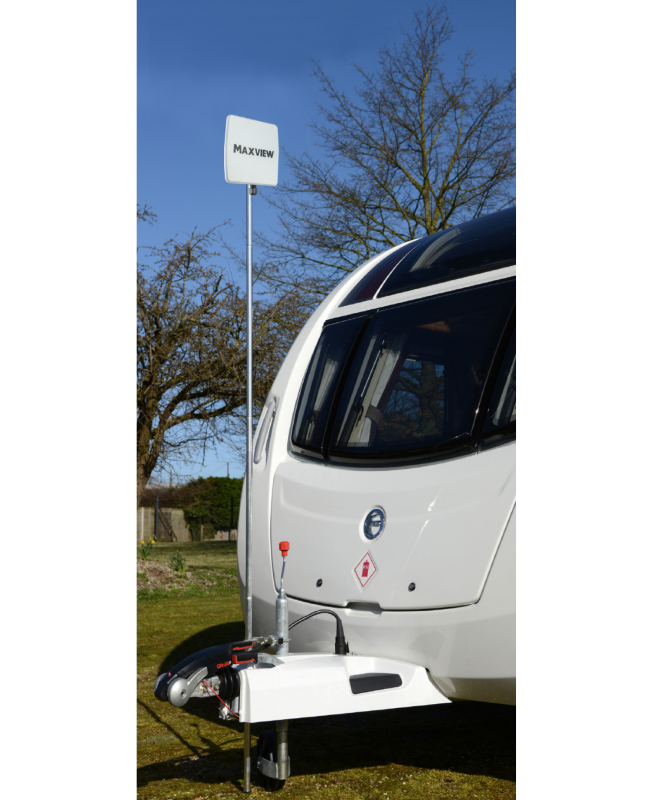

• Universal Temporary Mounting Options: Optional Extras: Use with an existing pole mount, tripod system, wall or any other suitable, secure method, onto your vehicle. Includes 2 pole clips and bracket system mounted directly on the the antenna. Maxview provide some compatible solutions to consider: – B2009 – Unimax Mast – B2004 – Vehicle Side Mast – B2006 – Jockey Wheel Mast Kit – B2535 – Deluxe Tripod
• Powered by Teltonika (Router) – We are proud to have formed a partnership with Teltonilka to bring you the powerful Roam Router.
• Devices – Connect up to 50 devices at any one time including Smart TV’s, Smart Phones, Tablets and Laptops.
• Power Options Uses – Supplied 12V automotive Cigarette Power Supply or can be powered using 230V mains power supply (sold separately). 1.5m Lead Length. 2 Amp Fused Input Protection. Power Consumption 0.4A Max.
• Remote diagnostics and troubleshooting support
• Compliant with all major legislation – Such as Radio Equipment Directive, ECE R10 and UK PSTI./li>
• 2 year guarantee
  • PLEASE USE THE PICTURES AS ILLUSTRATIONS TO SHOW HOW TO MOUNT THE ROAM BASECAMP, MOUNT OPTIONS CAN BE BOUGHT SEPARATELY




  Type:	Omnidirectional MIMO (multiple in multiple out). 2 x Multi-band 4G/LTE Antenna. 1 x Dual-band WiFi Antenna
  Frequency:	698-960 / 1710-2170 – 2300-2690Mhz
  Peak Gain:	6.1dBi
  Router Type	4G (CAT4 LTE)
  Compatible Speeds:	4G up to 150Mbs
  WiFi	MU-MIMO – 802.11.b/g/n – 2.4GHz
  Antenna Housing:	IP67, NEMA6 rated polycarbonate plastic
  Connection Devices:	Up to 50
  Router Power:	9-30 VDC (Reverse Polarity Protection) 12V Automotive Power Supply Included, 1.5m Lead Length 2 Amp Fused Input
  Power Consumption:	0.4A
  Family Browsing:	Yes, blacklists and whitelists
  Remote Diagnostics:	Yes
  SIM:	Unlocked
  Antenna Dimensions:	H:220mm, W:250mm, D:60mm
  Weight:	1102g
  Mounting Accessories:	Yes
