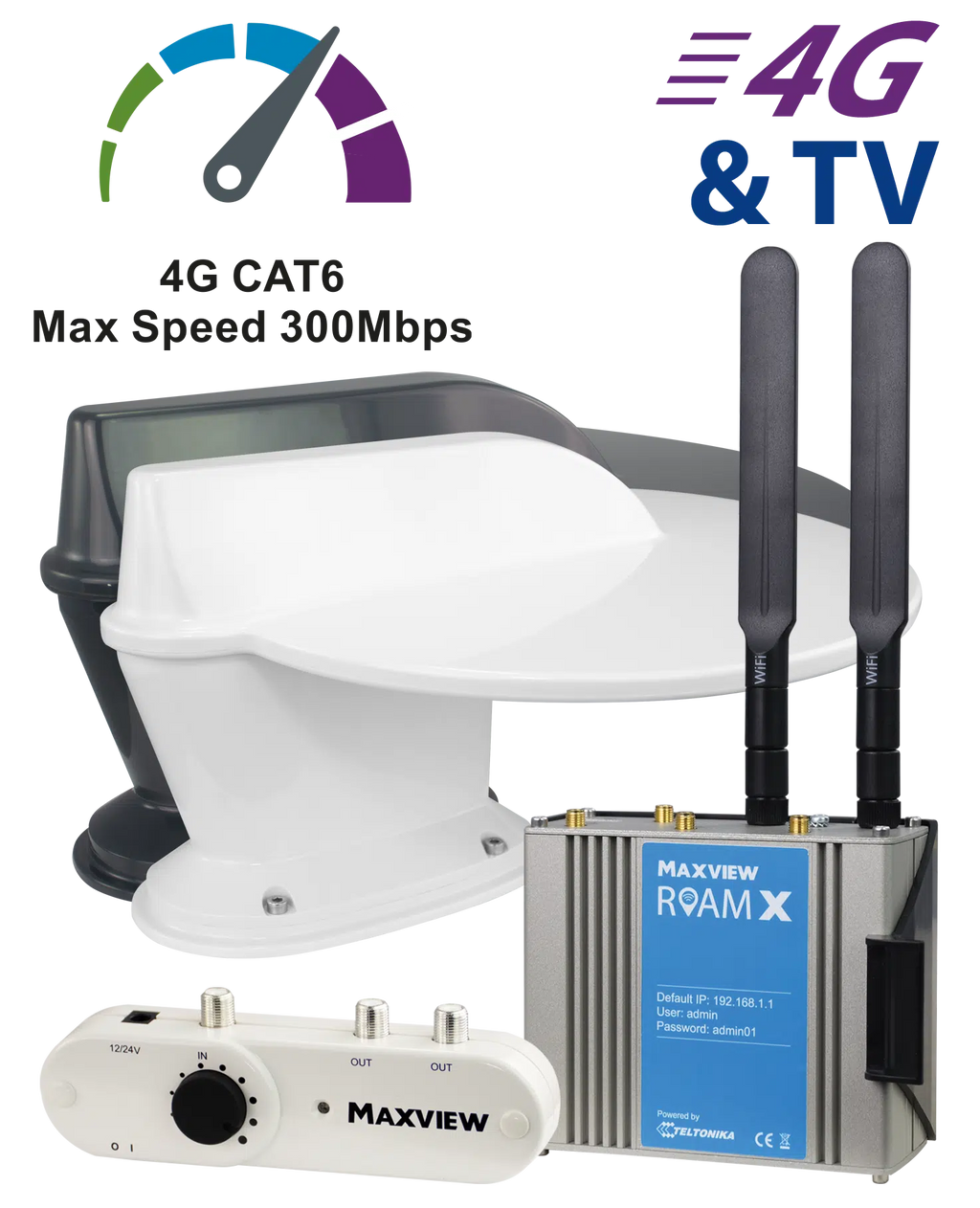

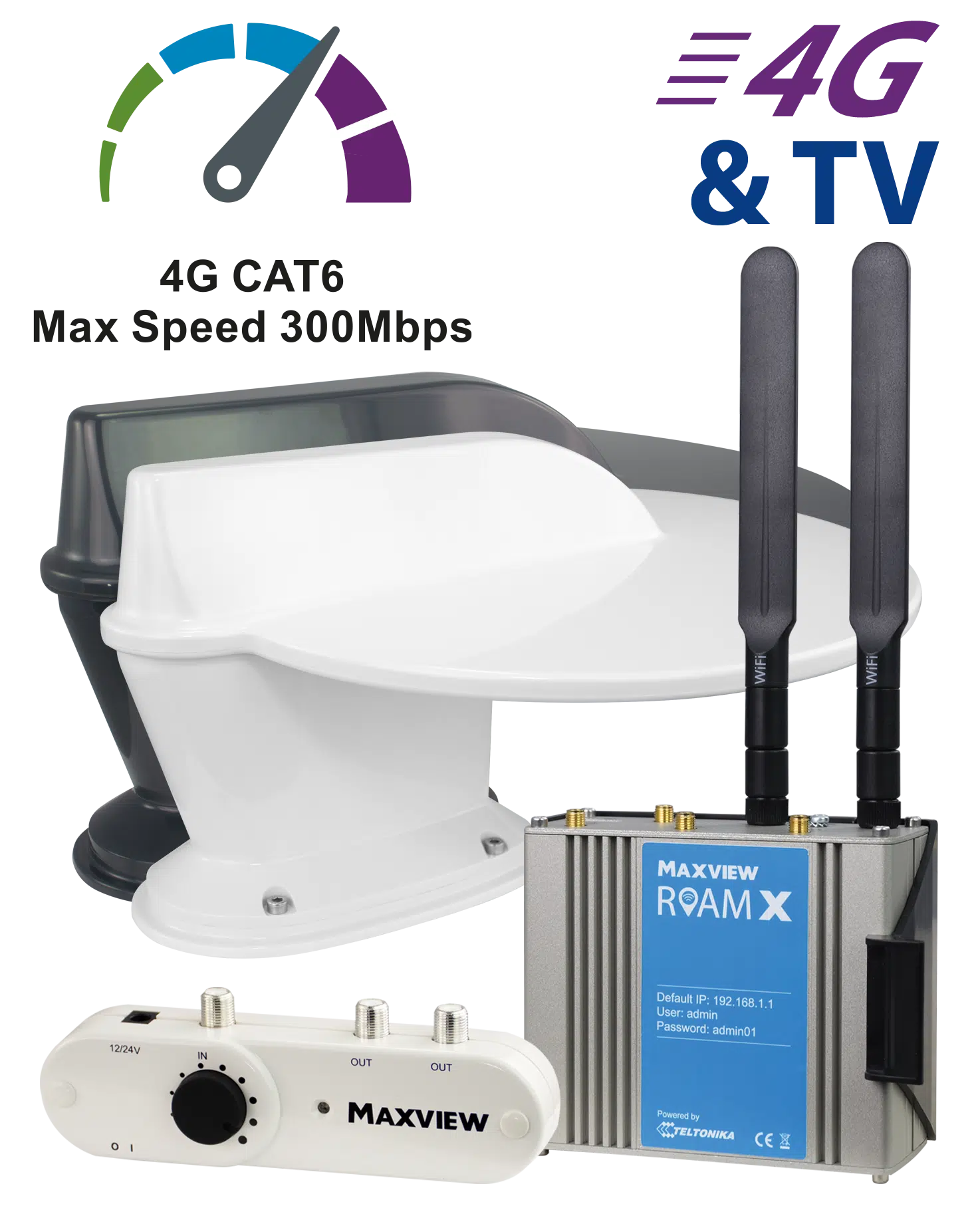

Maxview Roam X Combo 4g Wi-fi system White With Built In TV Antenna

Maxview Roam X Combo 4g Wi-fi system White With Built In TV Antenna

The Maxview Roam x is an all-in-one Wi-Fi/ TV Aerial Solution for Caravans Motorhomes Campervans or boats. Having the ability to allow you to connect to the site's wifi and create your own private network or inserting a sim card and having the devices run off that.

The First TV/Wifi Annetna Allows you only to drill one hole and keep both functions.

Being Maxview you will know that it will be well made and work as expected.

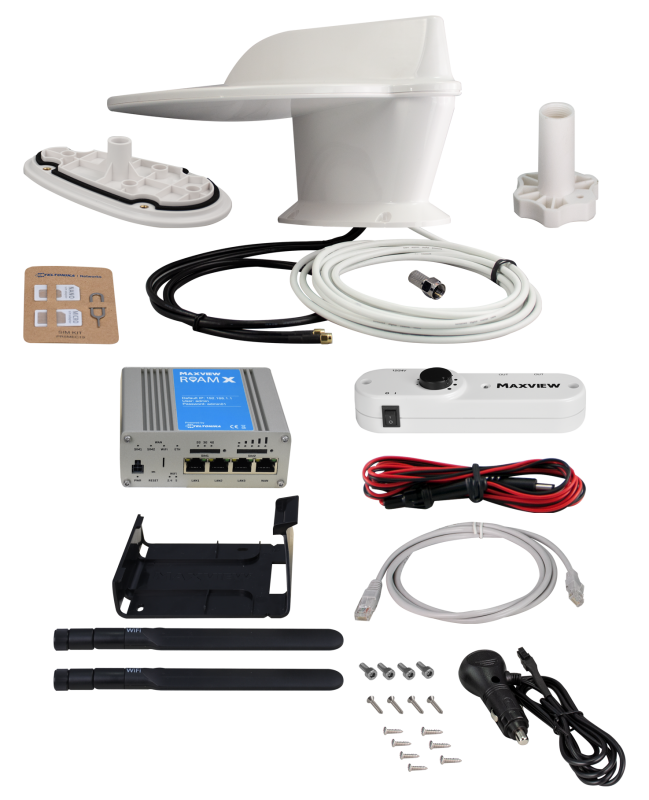

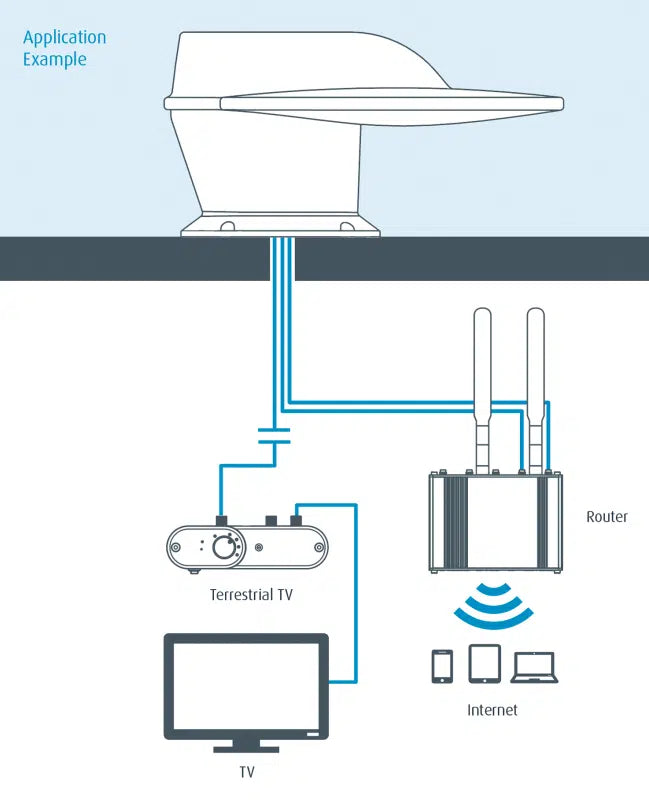

The roof antenna is white and is fully water-tight. all you will need to do is drill a hole for the wire and connect that to the router that you will mount inside the van.

Features And Benefits

• Static and Mobile Connectivity – Providing connectivity when stationary and whilst on the move.
• Terrestrial Freeview TV compatible.
• With free App control! – Provides simplified use of key features. Available on iOS or Android.
• Factory Unlocked for any SIM – The router is designed to work with any data service provider, alongside your choice of Data SIM, so you can use whatever network works best for you.
• Secure Internet Browsing – Uses advanced password encryption methods to ensure your internet connection remains secure.
• Family Friendly Browsing – Bespoke website blacklist filters can be set up to block unwanted websites.
• Powered by Teltonika – We are proud to have formed a partnership with Teltonika to bring you the powerful Roam router.
• Simple Installation – Self-adhesive pad and clamp provides quick and easy permanent through the roof installation. Once installed simply plug and play.
• Devices – Connect up to 100 devices at any one time, including Smart TV’s, Smart Phones, Tablets and Laptops
• Power Options – Includes 12V automotive cigarette power supply or can be powered using 230V mains power supply (sold separately)
• Connectivity – Can be wired using the 1.5m Ethernet cable providing a permanent connection directly to a device. Ideal for Smart TV’s
• Reliable Data Transfer – 0.8metre Cable with twist on (SMA) connectors as standard
• Remote diagnostics and troubleshooting support
• Very easy set up
• 2 year guarantee

ANTENNA SPECIFICATIONS

Type: omnidirectional
4g antenna function 1 frequency/gain: 698-6000 mhz/5.9dbi -8.8dbi includes all 4g frequencies
uhf tv antenna function 2 frequency/gain: wideband for uhf tv. 19db with signal booster
connectors type: 2 x sma & 1 x coax
power: passive
sma cable lengths: 2 x 0.8 metres (cables extensions available separately)
coaxial cable length: 1 x 5 metres
housing: aluminium base: uv stable asa cover
dimensions: 356mm (length), 311mm (width), 194mm (height)
weight: 1137g
mounting accessories: yes

ROUTER SPECIFICATIONS

Type: 4g and wi-fi
4g antenna connector: 2 x sma
ethernet ports: 4 x rj45 (wan and lan)
connection devices: up to 100
antennas: 1 x 4g (for external roof mount antenna) 2 x wi-fi (for internal whip antenna)
power: 9-50 vdc (reverse polarity protection) 12v automotive power supply included, 1.5m lead length 2 amp fused input
power consumption: 0.4a
family browsing: yes, blacklists and whitelists
remote diagnostics: yes
sim: 2 x unlocked
housing: aluminium
dimensions: h:270mm x b:115mm x d:45mm
weight: 550g

Questions And Answers

1. What Sim Card do I need For this? Any Simcard would work we recommend looking out for the highest Gb per month you can get. This will allow you to watch and steam more films and Tv shows.

2. How do I seal this on the roof? The maxview roam comes with a refitted adhesive pad on the bottom of the antenna.
