Description

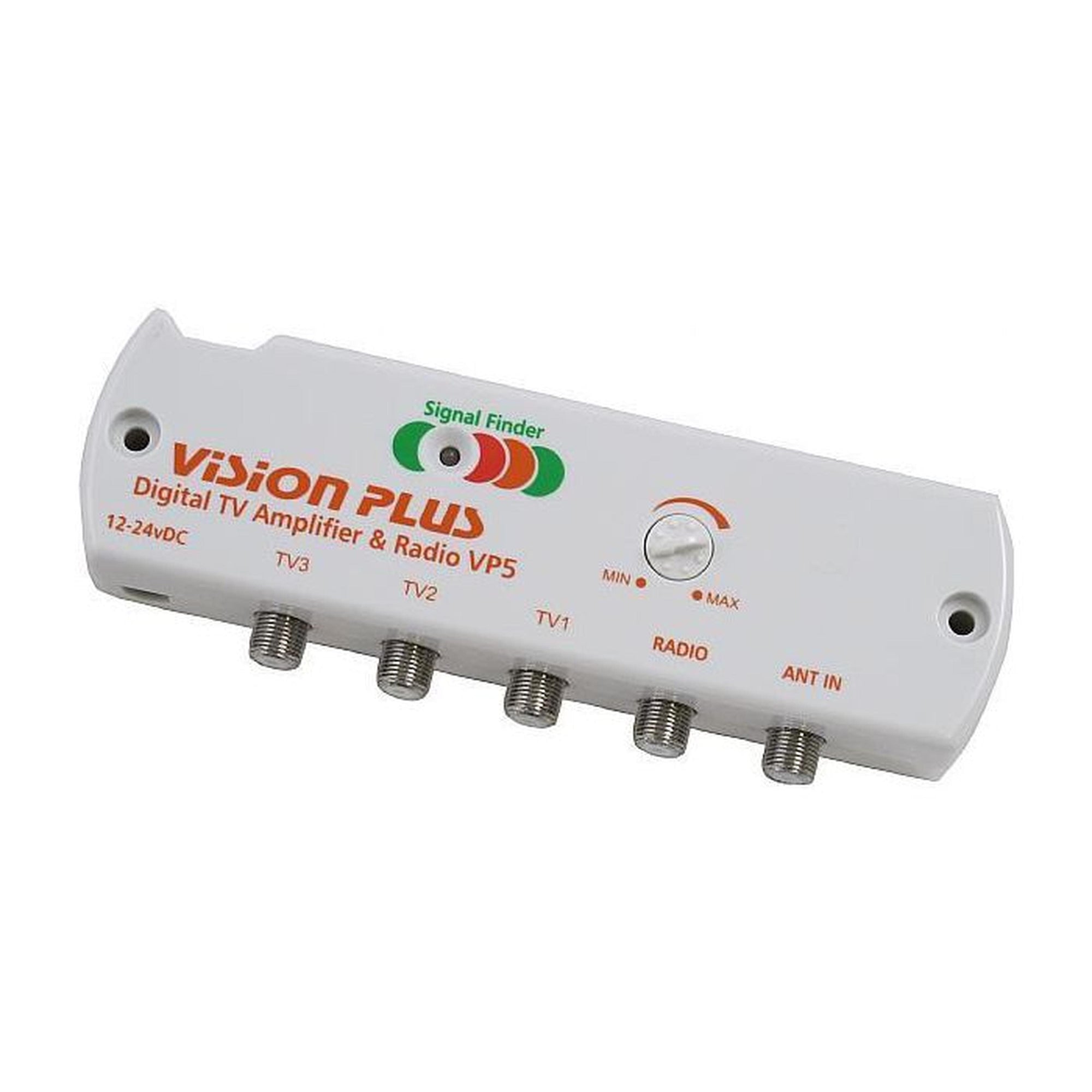

Vision Plus TV Digital Amplifier VP5
The Vision Plus VP5 Digital Amplifier is designed to enhance the performance of all non-amplified directional TV antennas. There is also a non-amplified outlet for FM Radio reception when used in conjunction with a UHF/FM antenna.
This unique product also incorporates a dedicated Signal Finder which will enable you to locate the strongest available digital TV signal. This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in poor reception areas.
Features And Benefits
This unique product also incorporates a dedicated Signal Finder which will enable you to locate the strongest available digital TV signal. This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in poor reception areas.
Features And Benefits
- On/Off switch
- Variable gain control
- 3 TV outputs
- 1 FM Radio output
- Frequency Range UHF 470-862 MHz
- Frequency Range VHF 40-230 MHz
- Frequency Range FM 88-108 MHz
- Amplifier Gain Max 14dB
- Gain Adjustment 0 to ≃ 15 dB
- Flatness +1.5dB
- Noise Figure 2.2dB
- Output Impedance 75ohms
- Signal Handling 80 dBμV
- Power Supply 10.8-28v DC
- Power Consumption 95 mA
- Dimensions 157wx46hx28d (mm)
