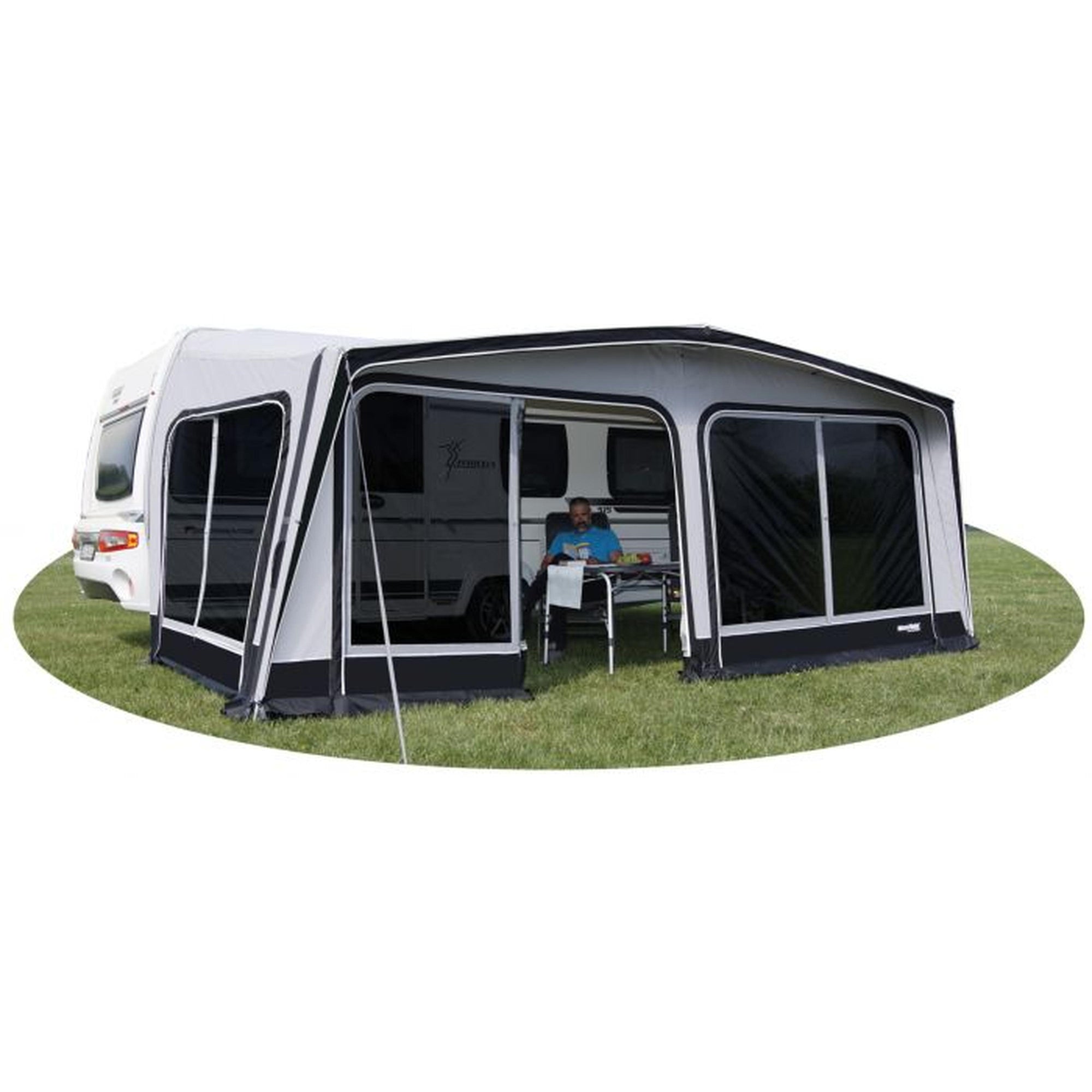

The Pluto is a traditionally styled full air awning. This is a true top of the range, luxury air awning with performance, style, classic looks and durability built in. It features the simply amazing Hydrotech fabric which gives unrivalled performance, amazing looks, great feeling to touch, and the very best protection against the elements.
You get the brilliant Advanced Air System which gives you single inflation from the start, ease of use and reliability. You also get the new 'Super-tubes' which are larger, stronger and more rigid than its rivals. This allows the awning to have less beams making the inside far more roomy and more aesthetically pleasing. The high specification bravo pump also makes it easier to inflate.
There are no hidden extras here, you even get a veranda pole giving you more options. It can also be extended with 1 or 2 annexes allowing you to increase the living or storage space if required. The removable front and side panels make this easier to pick up and slide though your awning channel, helping to make this awning easier to erect.
This awning has more panoramic views than all of its rivals. It features maximum sized windows to give you the very best views. They go lower to the floor letting more light in adding that extra feeling of space and light all the time. The awning also features unique side doors which includes an additional window panel, giving even more views and light in from the side.
The awning comes in two bags, one for the roof and the other for the sides, pump and pegs. This makes it easier to move around carry and store away. The packed size below is the size of the two bags together, along with all the pegs, pump etc.

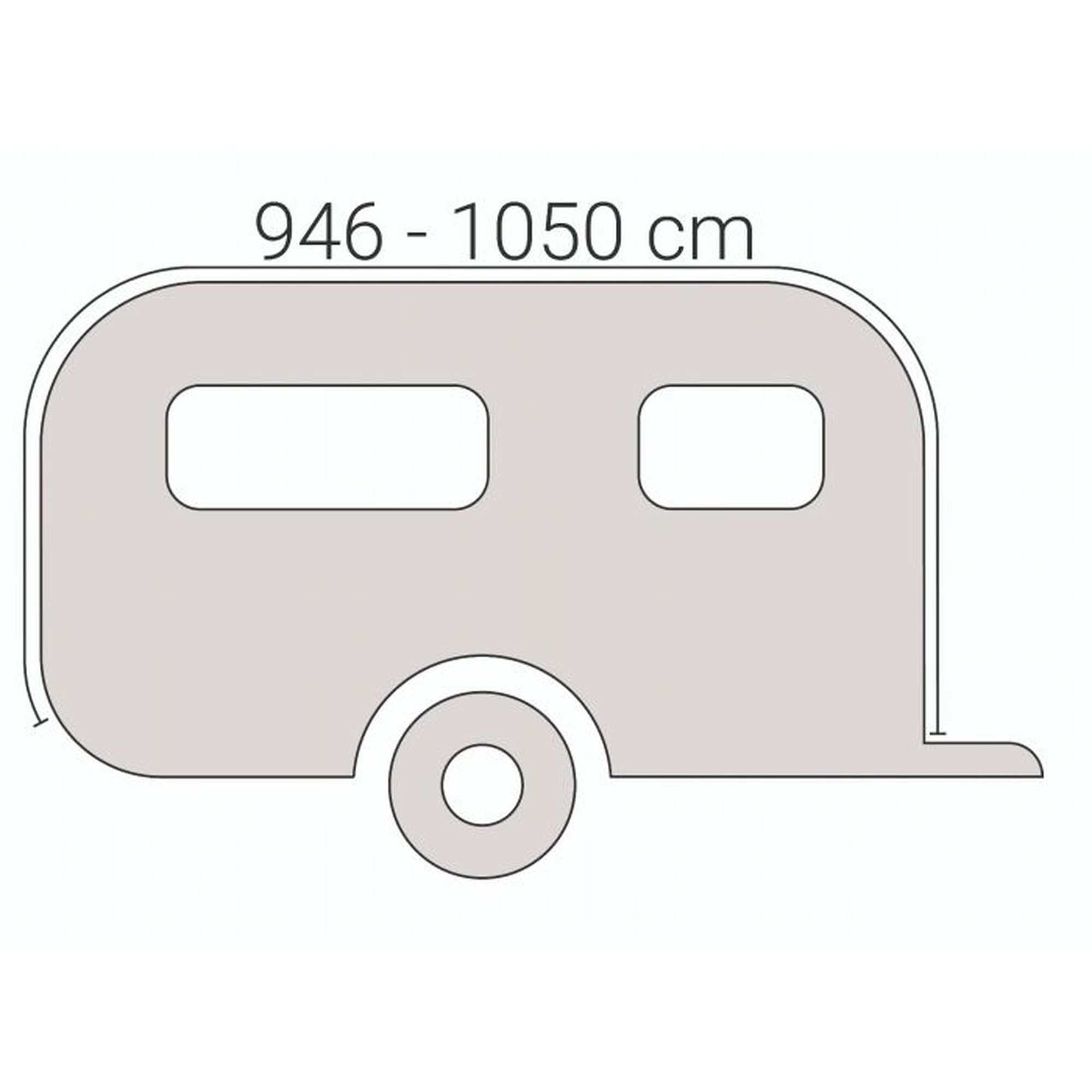

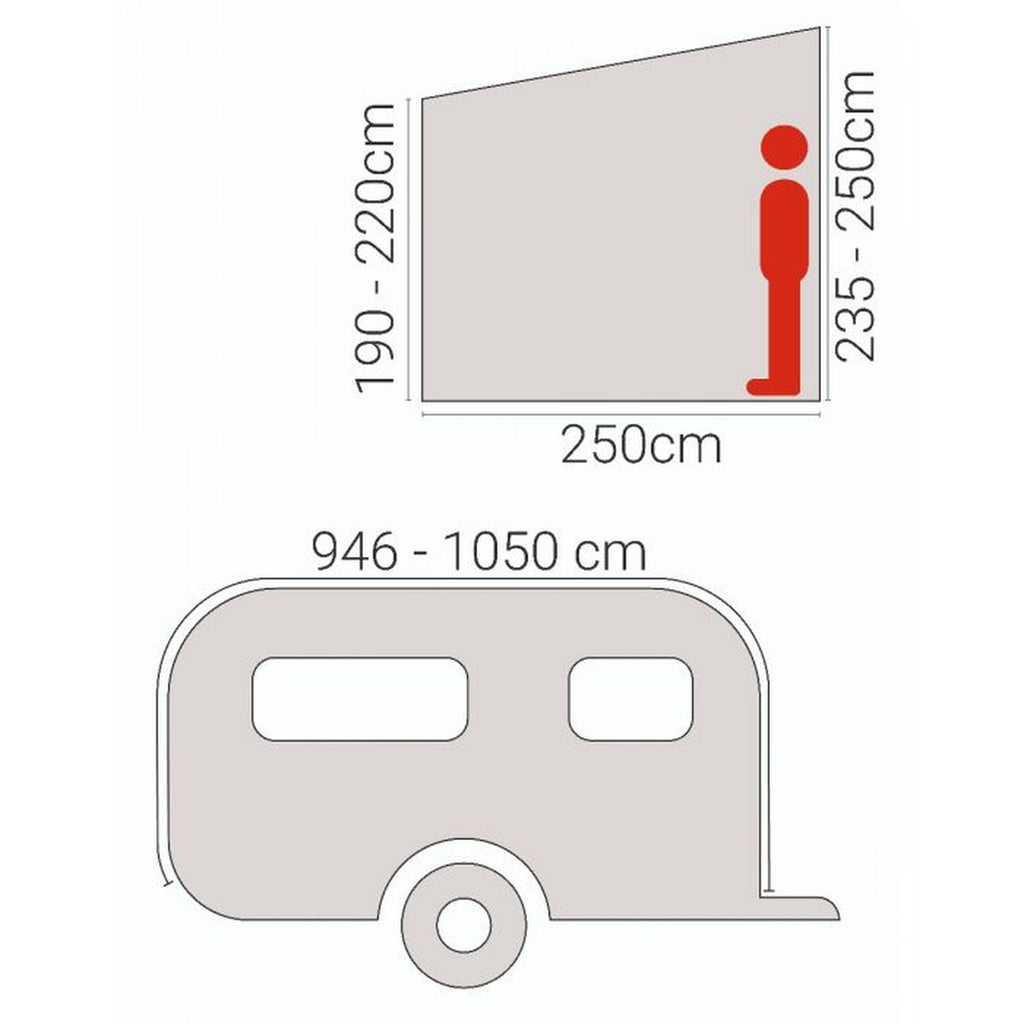

As the Pluto is a full awning the measurement is taken around the awning channel on your caravan. You can either check the details of your caravan (all caravans list the 'A-frame', or Awning size), or measure your awning channel from the bottom left corner all the away around to the bottom right corner.
This size (in cm) is your 'A-Frame' or awning size
- HydroTech cotton touch fabric
- Advanced air system
- Single point inflation
- 2 Year full warranty
- Any season awning - touring awning for all year round use not for use on a seasonal pitch
- Anti-Weather system
- Internal blinds (zipped)
- Pano View
- Annex ready
- UV 50+ Protection
- Pop up inner tent ready
- Emergency support system
- Removable panels.
- Super tubes
- Ventilation windows and doors (very large)
- Rain safe canopy
- Curtain pole ready
- Can be used as a canopy
- Tinted windows
- Draft skirt and wheel cover
- A SIZE: 946 -980 CM
- Pack Size: 115 x 33 x 33 cm, 115 x 34 x34 cm
- Total Weight: 20 + 20kg
- Pitch Time 20 mins
An extremely high end, luxurious and performant 300D material which is unlike any other. Based on the excellent HydraDore XT PRO then improved with a high end double coating (inside and out) to give you the very highest waterproof rating as well as extra durability and protection from the sun. Teh waterproof rating on this material is an incredible 10,000mm. Which is better than most high end clothing and is ten times more than the 1000mm considered fully waterproof ensuring that your awning will not leak and the material is waterproof. The coating is also nicer to touch and feel. The water proof performance and feel of this material is unsurpassed in the market and is only rivalled by performance clothing.
Advanced Air System (AAS)
The Advanced Air System (AAS) is a high specification air tube system. It has been created to give you the benefits of both a multi-inflation system as well as the ease of use of a single inflation system.
The system uses 4 layers for strength and stability. It has the internal bladder which is the part that you inflate. You then have a dual layer protective cover that has a PE and polyester covers bonded together, that adds protection and increases stability. The PE layer of the protective cover is also reinforced at the stress points giving it extra strength and stability. You then have a sleeve which is sewn into the awning which adds a final layer of protection and stability. This not only improves the protection around your air tube, as well as the stability of the awning as the tube is held in position better.

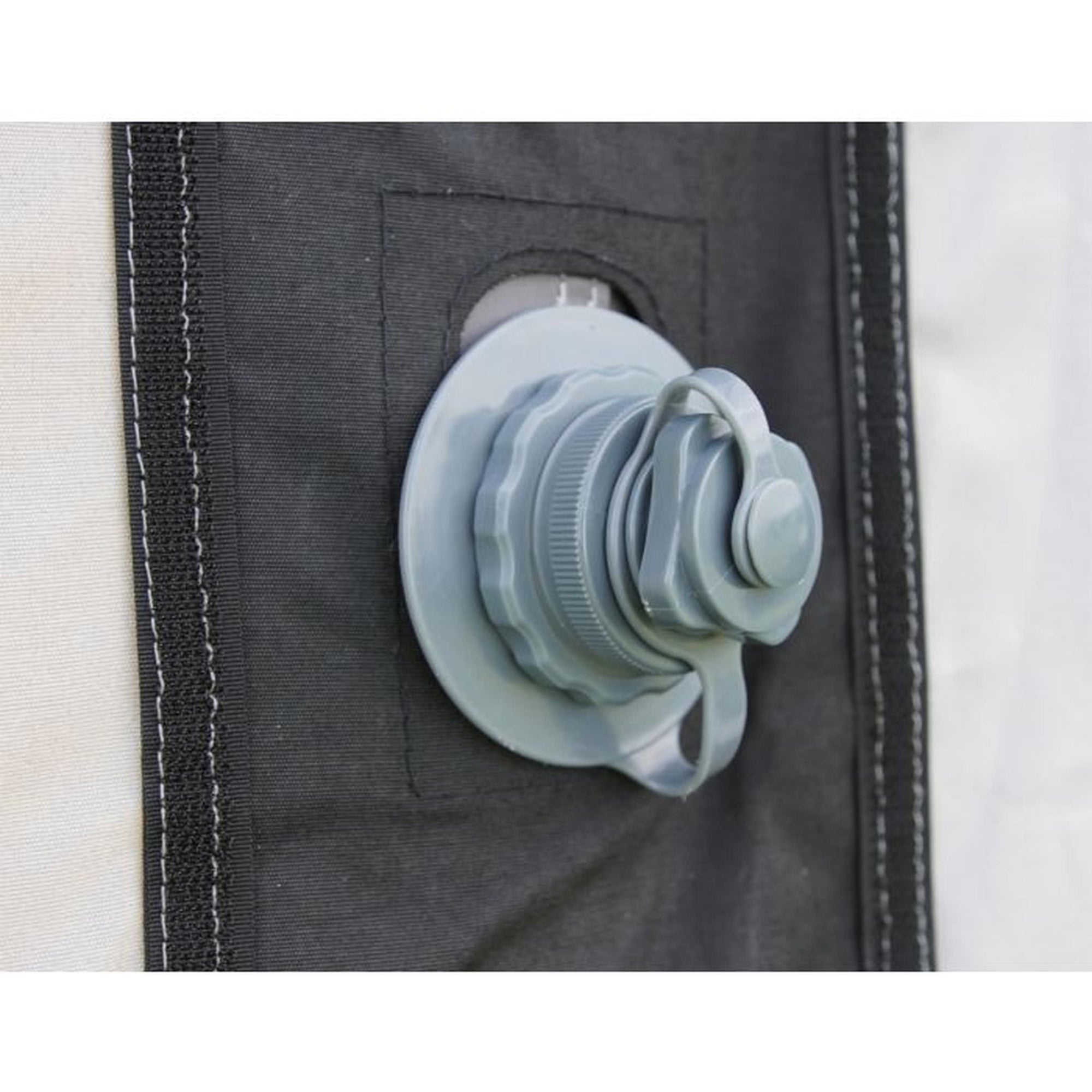

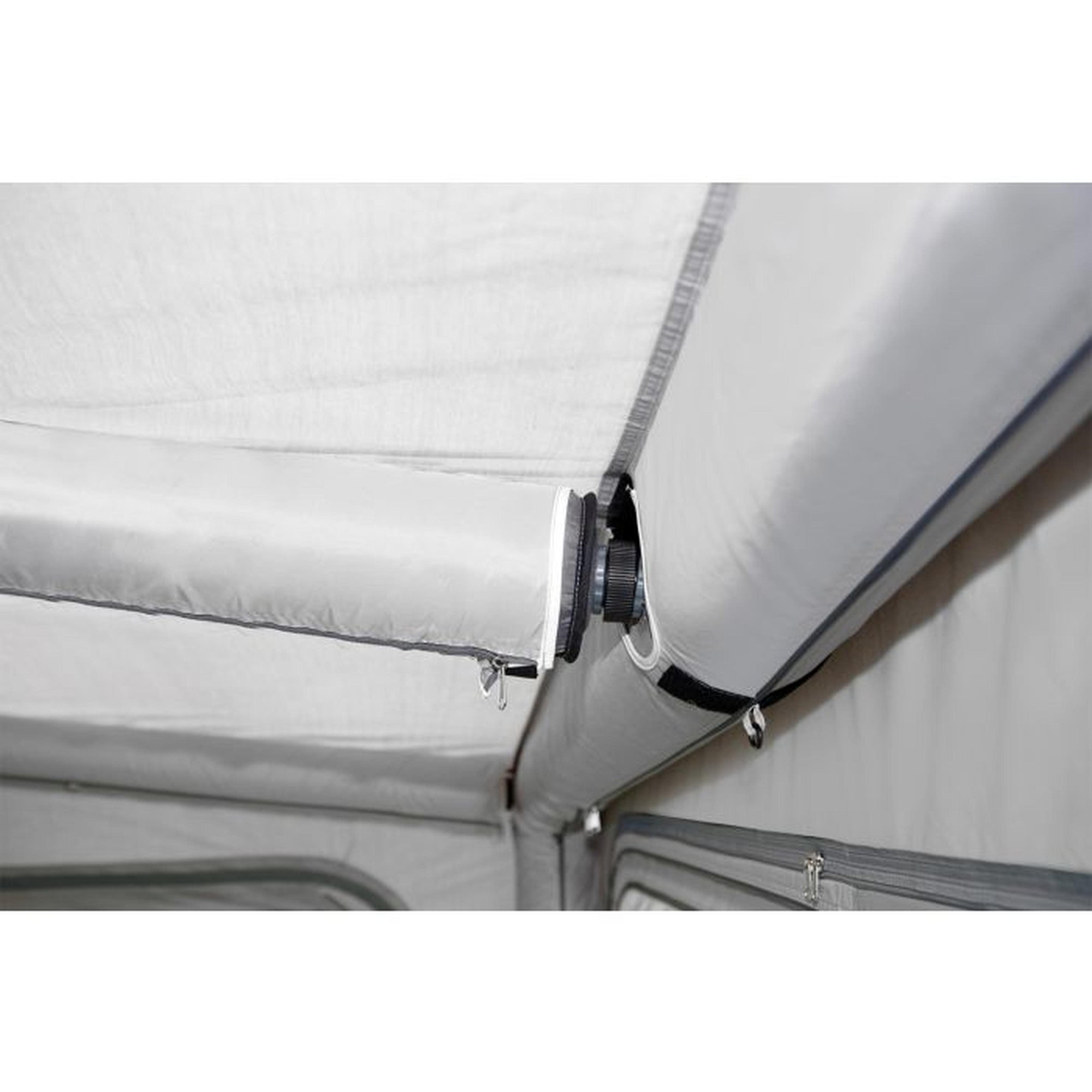

This single inflation system is inflated and deflated from one single point giving you great ease of use, especially if used in conjunction with an elect pump. The system also has you covered in the event of a failure. Firstly you can remove any affected part of the system, simply by unscrewing the affected tube. The main beam will self seal, leaving you the ability to fix the affected tube. Next the tubes themselves are designed so they can be fixed, by yourself on site, so there is no need to ruin your break and send the awning away to be repaired. You simply unzip the sleeve to get to the protective cover. This is then unzipped which gives you access to the bladder itself. This bladder can be removed, repaired using a puncture repair kit (we recommend using a professional repair kit as some cheaper kits have sub-standard glue) and then put back in. It also uses an easy to use single way valve for inflation which is simplicity itself; simply push the pump in and you are ready to go, there are no fiddly values or sockets, sheer simplicity and ease of use.
Anti-Weather System (AWS)
The anti-weather system is not one item but a host of improvements and updates that gives the awning better weather protection. There are additional weather panels sewn into the canvas at points where the weather could get in. This panel is P.U. coated on both sides and taped on both sides giving you better weather protection.
There is additional guttering on external windows with zips, which add extra protection against the rain. All tie back points or pockets that are sewn in are made from 100% waterproof PVC rather than standard webbing material. Standard material can soak water up and eventually lead to leaks, the waterproof PVC simply does not.

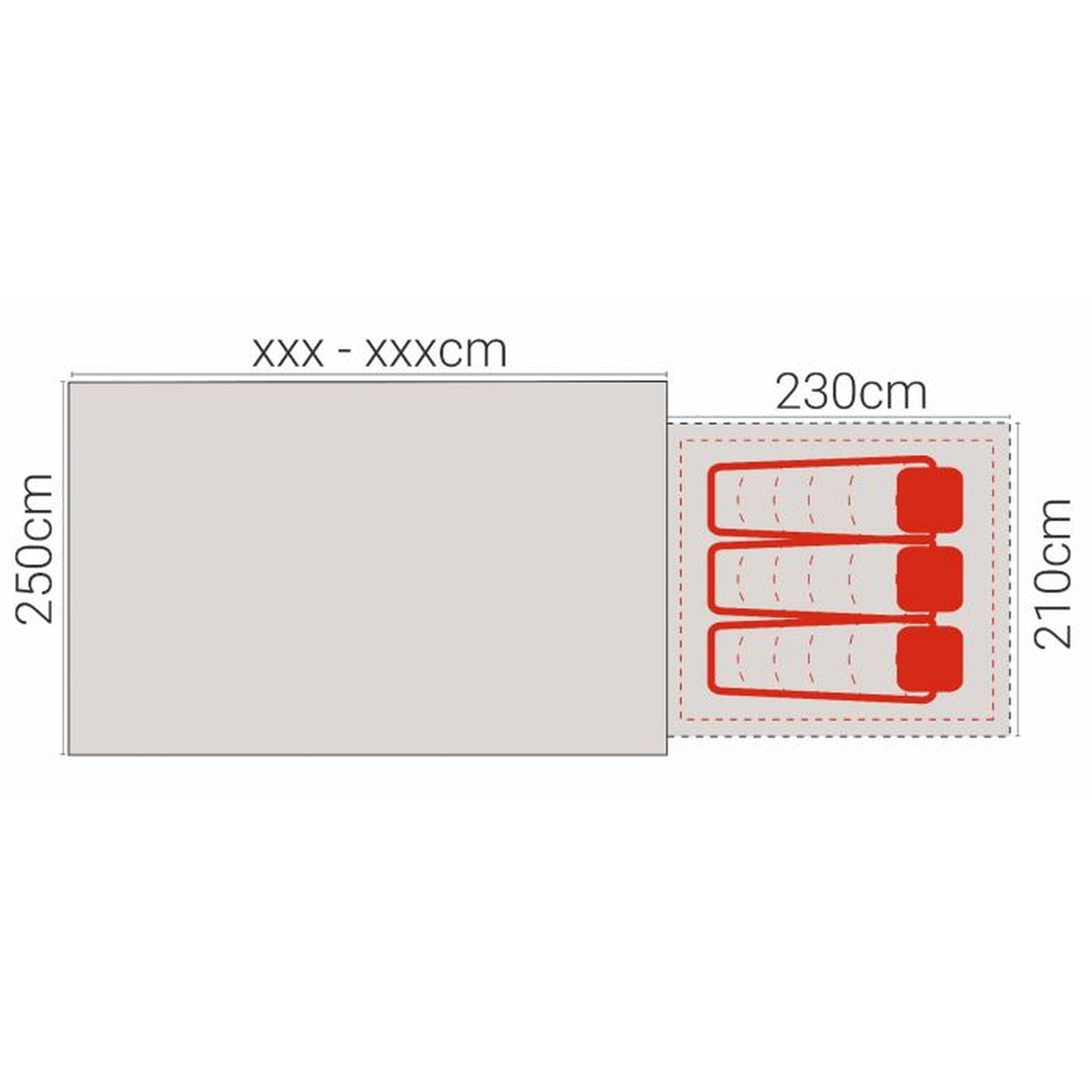

This awning is annex ready, which means it can gave at least one annex fitted to give you extra space for storage, or combined with the annex inner tent (sold separately) gives you extra living and sleeping space. The annex is simplicity itself. To fit the annex you simply pitch your awning as normal then just zip the annex onto the side, pump it up and peg.

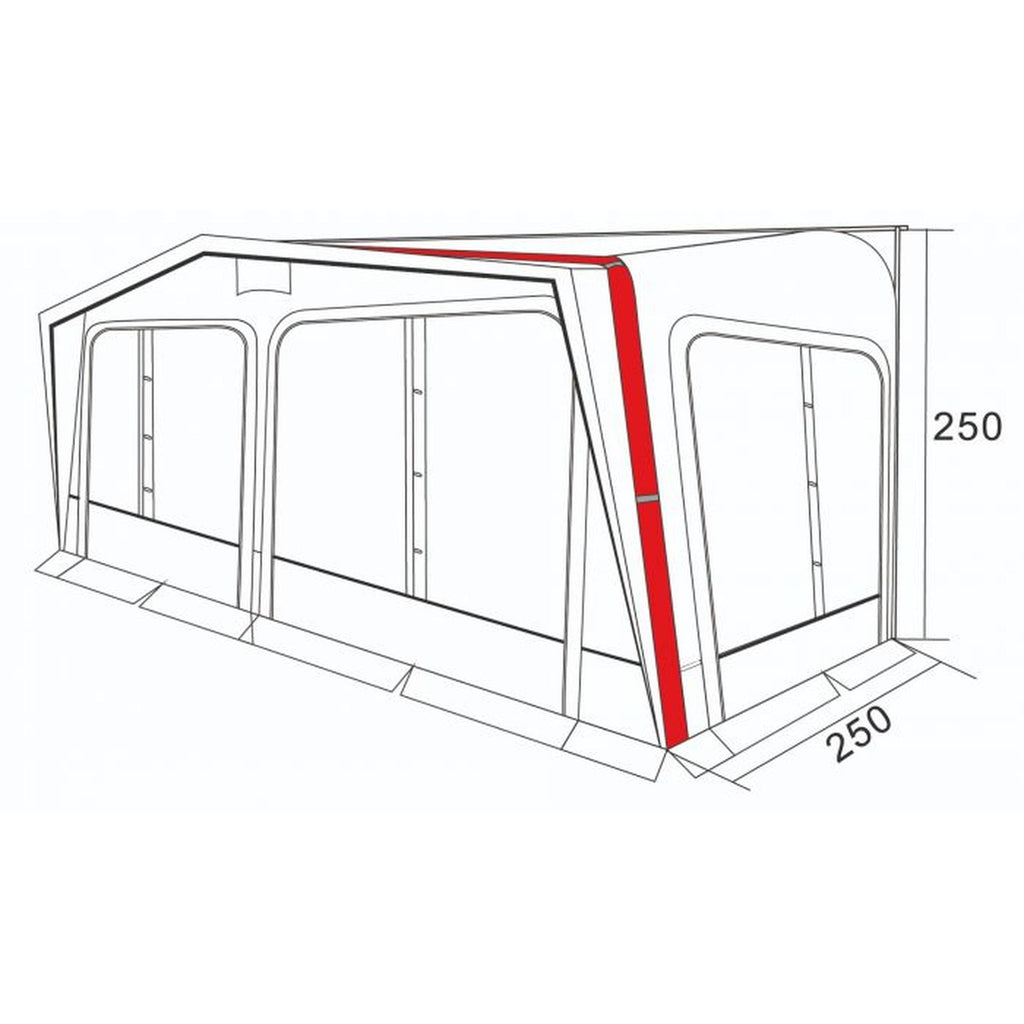

This awning features the Westfield Outdoors ‘Super-Tubes’. These are oversized tubes which give you greater rigidity, greater strength, less movement in the wind and all over more protection from the elements and weather. The use of the Super-Tubes also means that you need fewer internal beams, which allows greater use of the space inside, gives you a better less cluttered feeling inside the awning and simply looks so much nicer. It also means you have fewer tubes to manage, which makes the awning easier to live with.
Advanced Air System and Super-Tubes with single inflation.
Anti-weather system for added protection.
Full ventilation front and side panels, plus permanent, built in ventilation to minimise condensation.
Veranda pole and emergency support air beam system included.
Interchangeable side panels gives door layout flexability.
Four doors (2 front, 2 side) to give maximum options.
Double mudwall gives protection inside and out.
Reflective storm straps with strap tidy pockets.
Full front canopy to keep the rain off.

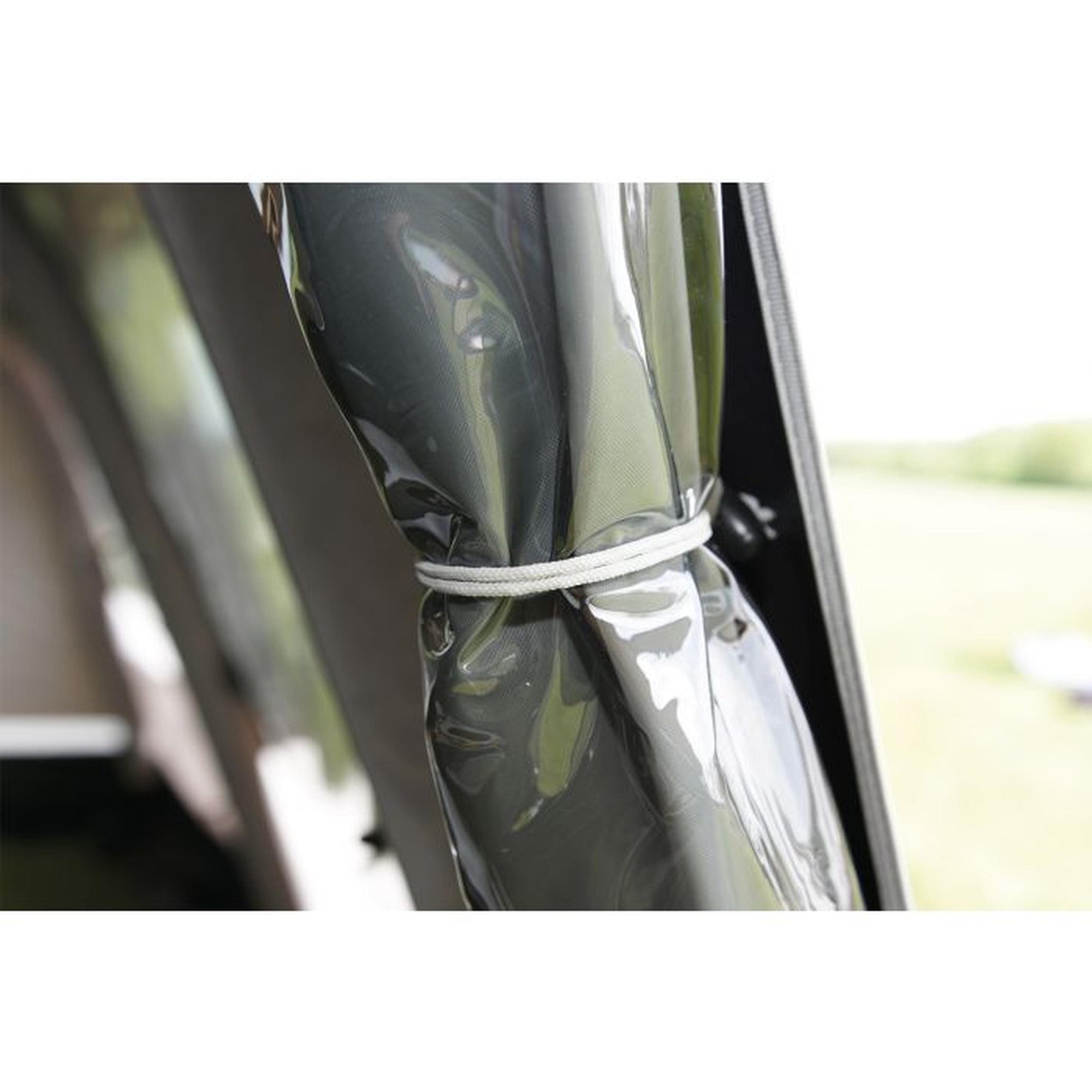

Perfect views with large super-clear windows with zipped blinds.
Annex ready - can be extended with one or two annexes.
Pockets and velcro tabs for optional curtains (purchased seperatley).
Unique window-doors gives you added views and light.
Warranty: 24 months
Windows: Super-clear foil

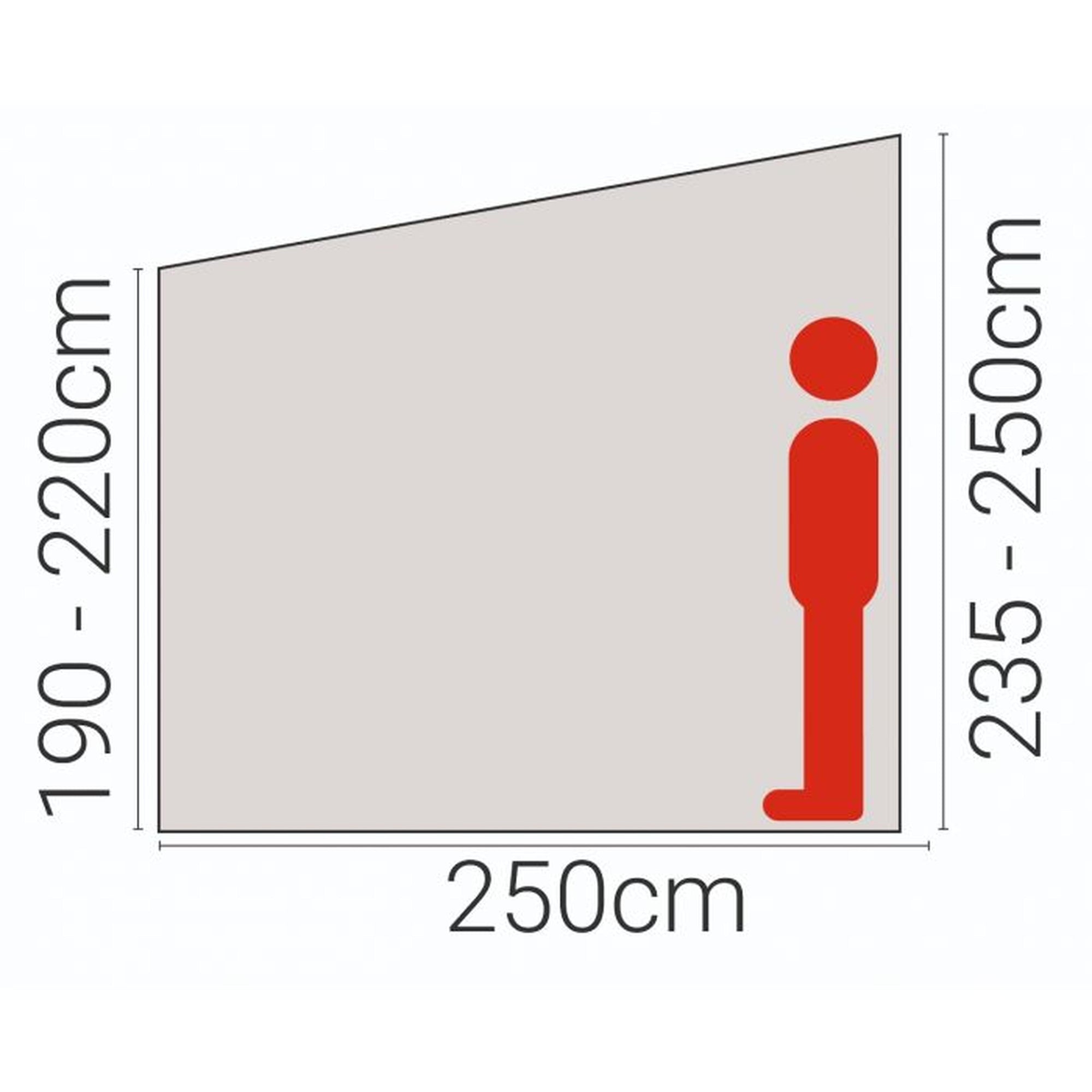

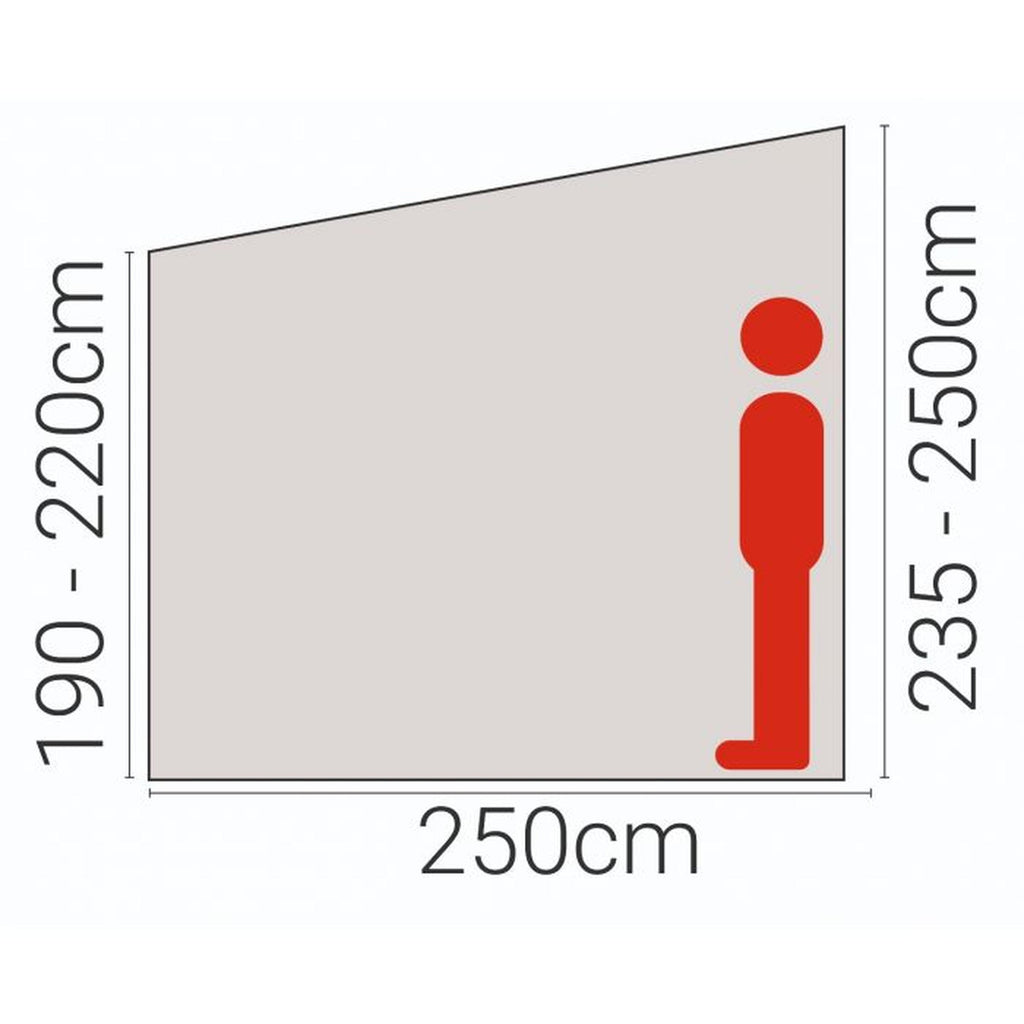

Awning rail height: 235 - 250 cm.
Depth: 250 cm
A measurement: 946 - 980 cm.
Pack size : 118 x 45 x 45 cm.
Awning weight (without panels) : 21 kg.
Awning weight (with panels) : 31 kg.
Total weight : 38 kg.
Storm air beam(s)
Annex Inner tent
Quest serial LED light
Quest LED lighting strip
